Premium handheld explosives trace detector delivering unmatched sensitivity

The Fido X4 is a premium handheld explosives trace detector (ETD) that delivers unmatched sensitivity for a broad range of explosives, so you can easily detect threats at levels others can’t.

Next generation technology

Next generation FLIR TrueTrace® detection technology features a new five-channel sensor array that delivers expanded threat coverage, enhanced sensitivity, and identification in a wide range of environmental conditions.

Simple user interface

The simplified user interface features onboard video tutorials, user prompts, and colorcoded alarms with strength indicators so you can operate quickly and decisively. Analysis and reporting of results are made simple through multiple modern connectivity options, allowing critical data to be shared quickly.

From high-volume checkpoint and randomized screenings to foot patrol and standoff operations, Fido X4 is ready to go when and where you need it.

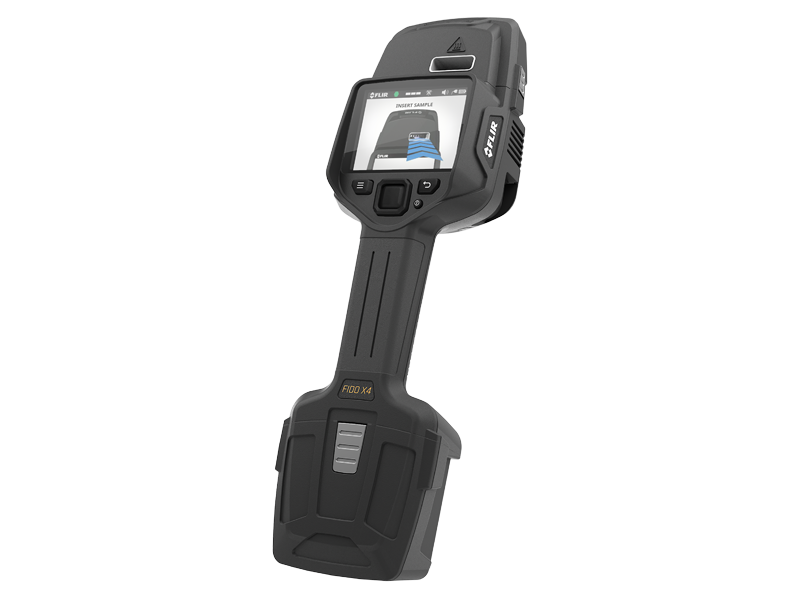

FLIR Fido X4 Premium handheld explosives detector

Next level detection

Expanded threat detection with best-in-class sensitivity from FLIR TrueTrace® Technology

  • Detect a wide range of explosives at nanogram to sub-nanogram levels, including Nitroaromatics, Nitramines, Nitrate-esters, Nitrosamines, Plastic Explosives, Smokeless Powders, and Peroxides
  • Gain actionable intelligence through identification of threats in as little as ten seconds
  • Particulate sampling mode for high-throughput checkpoint or randomized screening; vapor sampling mode for UGV missions or handheld bottle and
    container liquid screening

Operationally available

Intuitive interface dramatically reduces training burden and increases end-user adoption and retention

  • Learn basic operation and start screening quickly
    with on-device video tutorials and on-screen user prompts that provide step-by-step instruction
  • Easily interpret results with clear, color-coded alarms, and strength indicators
  • Power, firmware updates, data transfer, and future reach back capability with Bluetooth®, Wi-Fi, and USB-C connectivity options

Designed for the mission at hand

Designed for extended operations in a wide range of environmental conditions

  • Light (3.2 lbs) and ergonomically designed to
    minimize operator fatigue during high throughput
    screening scenarios
  • Up to 16-hour mission time with two 8-hour,
    hot-swappable batteries included
  • IP54-rated for dust ingress and water resistance
  • MIL-STD-810G compliant for shock, vibration,
    temperature, and humidity; one meter drop-tested
  • UGV hardware kit includes mounting bracket, inlet and screen protection, and battery port cover. FLIR PackBot® Integration Kit in development for 2020.

FLIR Fido X4 specifications

Technology

 FLIR TrueTrace®; five-channel fluorescence technology;
no radioactive source

Sampling & Analysis

Sample Introduction

 Swipes for particle collection and surface sampling;
direct vapor for bottled liquids and UGV-based
missions

Sampling Phase

 Trace particulate and vapor

Threats

 Detects military, conventional, homemade, and liquid
explosives

Time to Alarm

 10-25 seconds

Clear-Down Time

 Less than 30 seconds


System Interface

Display & Alerts

 Visible, audible, and haptic (vibration) alerts; vivid,
sunlight-readable color display (32k colors)

Localisation

 Language translation available worldwide

Communication

 USB-C (Drive and Link modes), toggleable Wi-Fi, and
Bluetooth

Data Storage

 3,500 hours of continuous data logging

Data Management

 On-device report generation; export to mass storage

User Levels

 Operator, Administrator, and UGV mode

Power

Input Voltage

 100-240 VAC (wall adapter supplied)

Battery Specs

 Up to 16-hour mission time; two rechargeable and
hot-swappable Li-ion batteries, each lasting up to
8 hours

Startup Time

 3 minutes from cold; <10 seconds from sleep

Environmental

Operating Temperature

 32 to 104 °F (0 to 40 °C)

Operating Humidity

 5% to 95% non-condensing

Storage Temperature

 14 to 122 °F (-10 to 50 °C)


Physical Features

Dimensions (L x W x H)

 14.5 x 4.5 x 2.8 in (37.0 x 11.5 x 7.0 cm) - with battery

Weight

 3.2 lbs (1.5 kg)

Enclosure & Protection

 IP54-rated, molded magnesium and polymer composite casing with anti-corrosive coating


Unmanned Platform Integration

Enclosure & Protection

 IP54-rated, molded magnesium and polymer composite casing with anti-corrosive coating

UGV Hardware Integration Kit

 UGV hardware kit includes mounting bracket, inlet
and screen protection, and battery port cover. FLIR
PackBot® Integration Kit in development for 2020.
