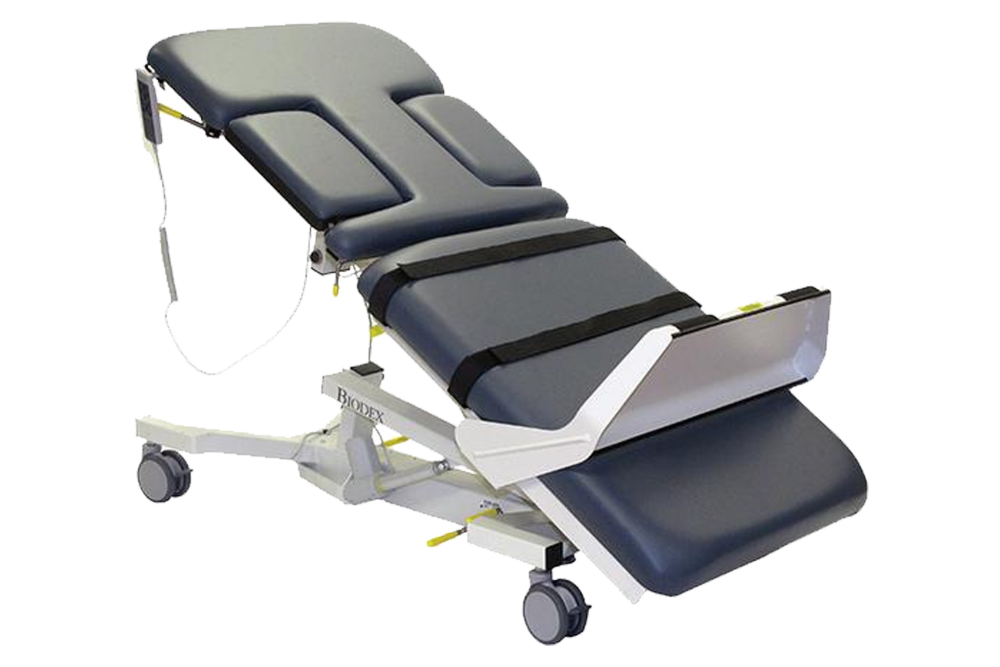

Echo/Vasc Pro™ Vascular Echocardiography Table

The Echo/Vasc Pro™ Vascular Echocardiography Table is the logical choice for performing vascular scanning and echocardiography.

It is designed with many features that help obtain the best quality image and keep the sonographer safe from injury. The Echo/Vasc Pro features 30 degree reverse Trendelenburg positioning, ideal for expanding lower extremity veins for maximum vessel dilation. The NEW adjustable foot support provides the sonographer comfortable access to a patient’s calves without crouching. When not in use, the foot support stores beneath the table allowing clear access to the tabletop.

Body straps stabilize the patient and ensure safety throughout the entire procedure.  The design also includes a cardiac drop-down cushion, with the ability to release and return from either side of the table, providing ample scanning access for an unobstructed apical approach.

As with all Biodex ultrasound tables the Echo/Vasc Pro features Fowler positioning to accommodate natural body extension and sitting position without slide and shift, optional side rails for easy access to the patient, an optional Articulating Scanning Arm Board adjustable from 0 to 130-degrees and soft antimicrobial vinyl upholstery.



Dimensions

 Overall L 73" x W 30" (185.4 x 76.2cm); W 35" (88.9cm) with optional side rails
Cardiac Scanning Cutout L 15.75" x W 9.5" (40 x 24.1cm)
Sonographer Cutout L 14.75" x W 8" (37.4 x 20.3cm)

Motions

 Height Adjustable 23" to 39" (58.4 to 99cm)
Trendelenburg 0° to 15°
Reverse Trendelenburg 0° to 30°
Fowler Positioning 0° to 80° infinitely adjustable

Controls

 Hand Control Activates height, Trendelenburg motions, Fowler positioning and auto level motions
Foot Control Activates height, Trendelenburg motions, and Fowler positioning

Wheels

 5" (12.7cm) Individual locking swivel casters; central floor-locking system

Tabletop

 Two primary sections Torso section features sonographer and patient cutouts with Fowler positioning, and lower body section remains fixed
Drop-down cushion Releases from either side of the table
Adjustable sonographer cushion Drops down or folds up for maximum access to the patient

Foot Support

 Adjustable every 2", up to 14"

Mattress

 Torso section 2" (5cm) thick, lower body section 3" (7.6cm) thick; Naugahyde®, antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria

Upholstery Color

 Graphite

Patient Restraints

 Two body straps

Finish

 Powder coat

Patient Capacity

 500lb (227kg); weight tested to four times the patient load rating

Weight

 335lb (152kg)

Power

 115 VAC (058-702) or 230 VAC (058-707)

Suitable Procedures

  • Echocardiography

  • Transesophogeal Echo (TEE)

  • Stress Echo

Lower Extremity

  • Venous Mapping and Doppler (DVT)

  • Venous Reflux

  • Venous Insufficiency

  • Venous Ablation

  • Arterial Scan/Doppler (PAD)

Upper Extremity

  • Arterial

  • Venous Access Placement and Assessment*

  • Carotid

  • Carotid Duplex

  • Transcranial

  • Abdomen

  • Aorta

  • Thyroid

  • Breast

  • Renal

  • Renal Transplant

  • Renal Artery

  • Testicular

  • Musculoskeletal

  • SMA

*Requires optional vascular arm board.
