P Series

Directional Gamma-Ray Imaging Spectrometer

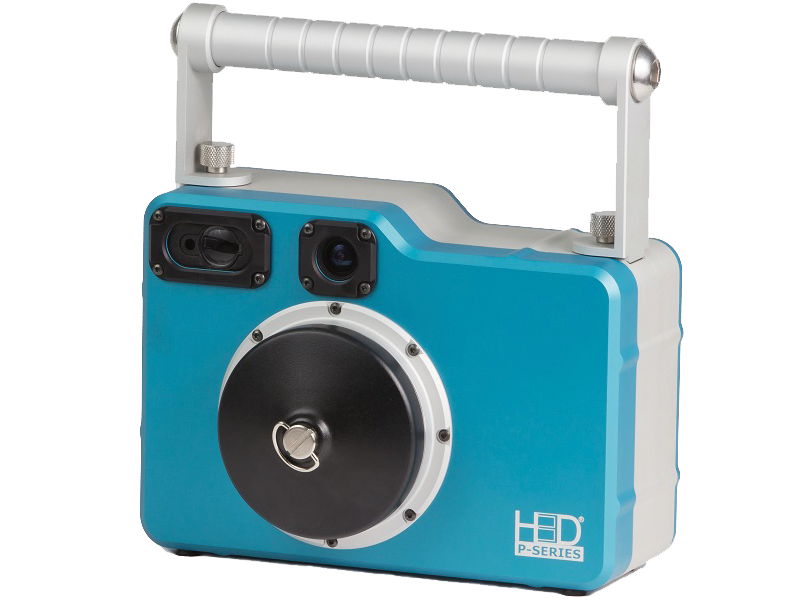

P Series Directional Gamma-Ray Imaging Spectrometer

The P series is a wide selection of directional Gamma-imaging system using CZT detectors.

The P series has been developed for nuclear power plants as a solution for the identification and quantification of gamma-ray sources in the presence of strong gamma-ray sources.

The same imaging and spectral performance of H100, but with a tungsten collimator to help focus on the source of interest.  20 years of development and 5+ years of application-specific engineering to the exacting standards of nuclear power plant operators to support: Isotopic characterization, Quantitative analysis of radiation in pipes and ducts, Emergencies, incidents, and outages.

The CZT detectors used in the H series have Spectroscopic performance competitive with cryogenically cooled detectors and directional isotope-specific gamma-ray imaging using a tungsten collimator.

P Series Directional Gamma-Ray Imaging Spectrometer features

• Sensing and imaging over collimated directions, using an embedded tungsten collimator
• Isotopic quantification of gamma-ray sources
• Real-time spectroscopy, ID, and imaging
• Better than 1.1% FWHM energy resolution at 662keV
• No cryogenic cooling required
• Energy range covers isotopes of interest up to 3 MeV
• Rangefinder for detector-to-source distance estimation
• Wireless or wired tablet operation
• Ready to use in only 2 minutes
• Air/water tight for easy decontamination
• Precision overlay of gamma-ray and optical images
• Images both point and distributed sources
• Easily exchangeable tungsten plug
• Operates at high dose rates
• Tripod mount
• Annual recalibration and software updates included

P Series Directional Gamma-Ray Imaging Spectrometer models

Documents

• H3D Range Brochure

  Download (942.93 kB)
• H3D-P100-Datasheet-EU-Version-1.0

  Download (1.03 MB)
• H3D-P100S-Datasheet-EU-Version-1.0

  Download (894.4 kB)
