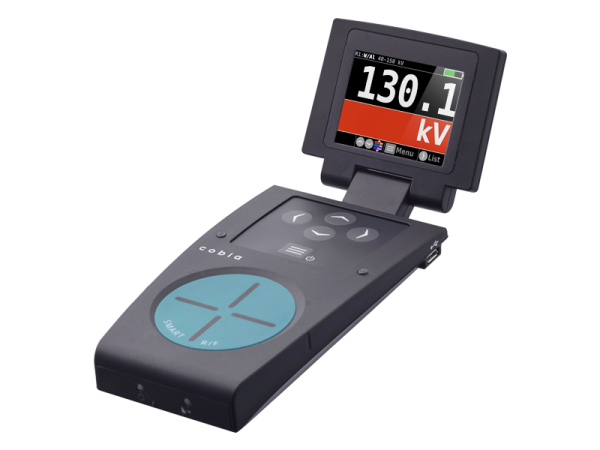

The Cobia SMART offers the simplest solution for checking that the output from an X-ray tube is correct for a range of different modalities including radiography and fluoroscopy.

Cobia Smart is a straightforward and simple-to-use instrument for checking that the output from an X-ray tube is correct. Place it beneath the X-ray tube, make an X-ray exposure, and rapidly get an accurate reading. The measured values can be read directly from Cobia Smart’s large and clear display, even from a distance. No adjustments are required, making it exceptionally easy to use.

Check and Go

Cobia Smart is perfect for anyone wanting to ensure that an X-ray device is functioning as it should. For example, Cobia Smart is ideal for checking fast and often that the kV and/or dose are not changing over time.

Rotatable Color Display

Cobia Smart has a clear and rotatable color display, so you can read off measurement results fast and easily – even from a distance. The innovative display even shows the results right way up in measurement situations where the instrument needs to be positioned upside down.

Straightforward and Trouble-free

When we created the Cobia Smart, our goal was to develop a straightforward instrument that anyone could use. RTI has over 30 years of experience in the manufacture of X-ray detectors, and Cobia Smart is a direct implementation of our high-tech knowledge coupled with what we have learned in the field.

Weight Approx 290 g
Size 138 x 76 x 27 mm³
Power source Internal battery
Battery life 10 – 20 hours
Display Color, 320x240 pixel
Min. exp. time 0.1 ms
Auto-Compensation 1.5 – 45 mm Al Total Filtr. equiv.
Sensitivity 0.2 mA @ 50 kV, 50 cm (3mm Al)
Parameter Range Inaccaracy
Tube volt. 38 – 155 kVp ±2 %
Time 0 ms – 2000 s ±1 % or ±0.33 ms
Dose 400 nGy–1000 Gy ±5 %
  50 μR – 100 kR ±5 %
Dose rate 10 µGy/s – 100 mGy/s, ±5 % or ±200 nGy/s
  1.1 mR/s – 11 R/s, ±5 % or ±2 μR/s
  66 mR/min – 700 R/min, ±5 % or ±0.1 mR/min
HVL 1.2 – 14 mm Al
  ±10 % or ±0.2 mm

Cobia Range

  • No positional dependence.
  • Large rotatable display.
  • Multiple languages.
  • Log/history function.
  • Measures pulsed radiation.
  • Full auto range (kV, TF and Sensitivity).
  • Solid-state detectors, no need to compensate for temperature and pressure.
  • Long-lasting rechargeable battery.
  • 2-year calibration cycle.
  • Built-in energy compensation.
  • Free firmware upgrades via internet or CD.
