A ruggedised integrable detector module

The H3D T Series is a range of detectors developed for the identification and localisation of gamma-ray sources in punishing environments. Integrate this rugged instrument into your applications with mount points and a simple electrical connection.

The range contains the most advanced room-temperature semiconductor technology to achieve spectroscopic performance competitive with cryogenically-cooled detectors. It is compact, lightweight, durable and resistant to all kinds of weather. It is also available in a shielded option.

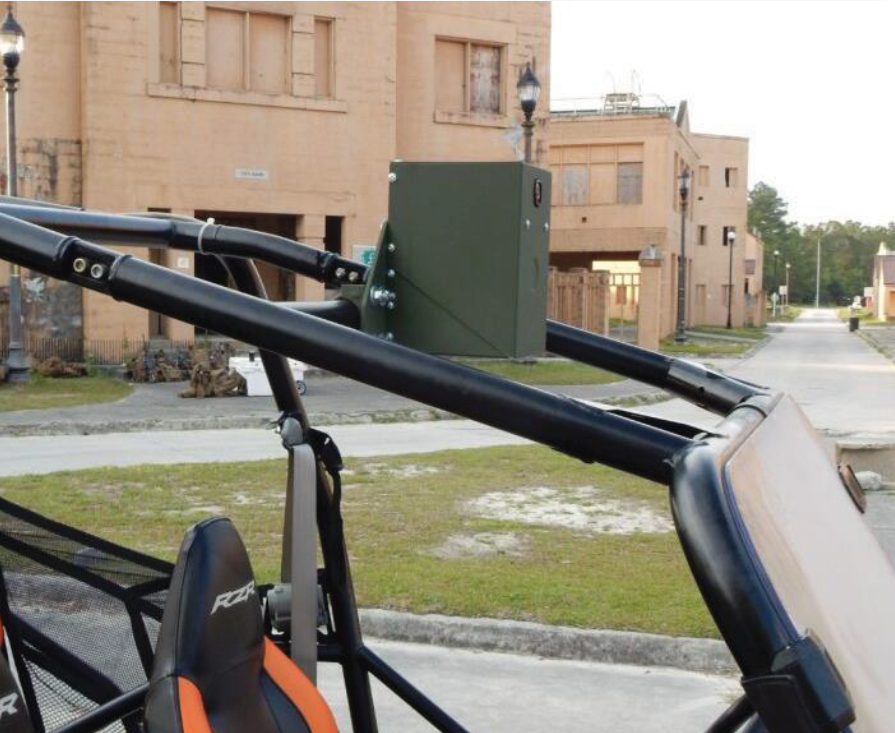

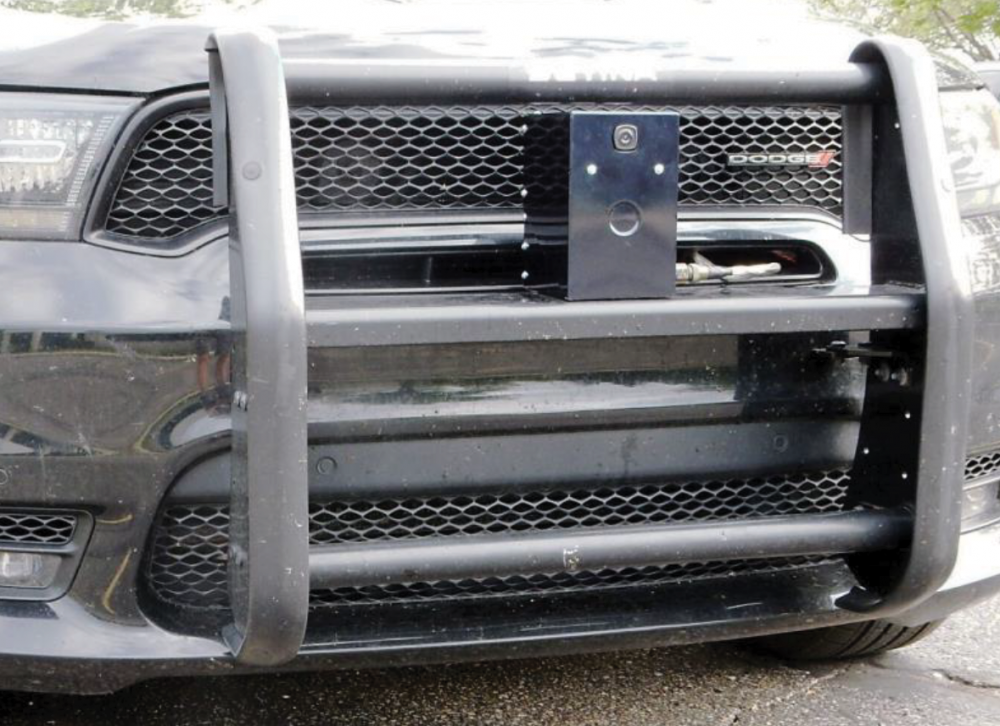

The T Series can be integrated with:

  • Vehicles
  • Drones
  • Robots
  • Monitoring stations
  • Other sensor suites

Features

  • Fast and portable imaging spectrometer.
  • Ready to use in only 90 seconds.
  • Rapidly identifies gamma-ray sources.
  • Energy range covers isotopes of interest up to 3 MeV.
  • Real-time spectroscopy, imaging, and ID.
  • Discrimination between background and sources of interest in less than 20 seconds.
  • Precision overlay of gamma-ray and optical images.
  • Images both point and distributed sources.

Options

  • ‘Plus (+)’ Option for ≤0.8 % FWHM energy resolution at 662 keV and interaction-by-interaction resolution of ≤0.65 % FWHM.
  • ‘P’ Shielded Option offers shielding to sides and rear of detector to reduce background. Option adds 1.0 kg.
  • ‘S’ Spectroscopy Option to offer gamma detection only, without optical camera and radiation imaging.
  • Options can be combined (e.g. T400SP+, T400SP, T410P+)
Model T410 T410+ T410P T400S
Resolution (% FWHM @ 662keV) <1.1 <0.8 <1.1 <1.1
Spectrometer Range (keV) 50 to 3000 50 to 3000 50 to 3000 50 to 3000
Imaging Range (keV) 50 to 3000 50 to 3000 50 to 3000 N/A
Collimator (mm Tungsten) N/A N/A 4.7 N/A
CZT Volume (cm3) >19 >19 >19 >19
Weight (kg) 3.9 3.9 4.9 3.9
Battery Life (hrs.) N/A N/A N/A N/A
IP Rating IP67 IP67 IP67 IP67
Temperature Rating (°C) -40 to 50 -40 to 50 -40 to 50 -40 to 50
Startup Time (minutes) <1.5 <1.5 <1.5 <1.5
User Interface Webpage/API Webpage/API Webpage/API Webpage/API
